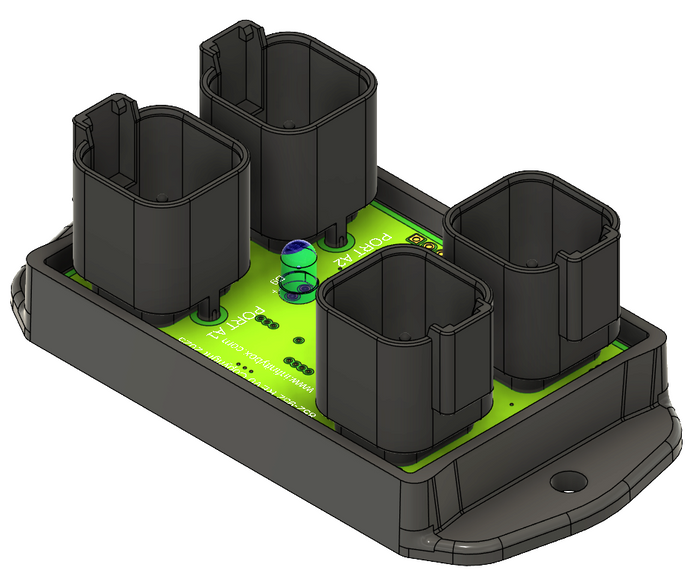

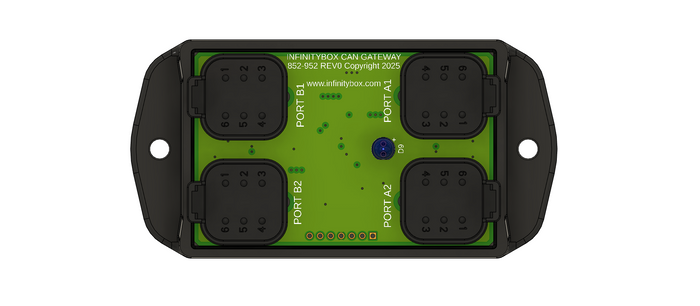

Infinitybox CAN/CAN FD Gateway
)
)
)
)
)
)
The Infinitybox CAN/CAN FD Bidirectional Gateway
is a high-performance, harsh-duty-grade protocol
converter designed for seamless communication
between different CAN networks in commercial
vehicles and automotive applications. This gateway
provides flexible, reliable translation between CAN
networks operating at different speeds and
protocols.
Key Features
• Dual Independent CAN Channels
• Bidirectional message forwarding between
any two CAN networks
• Flexible protocol support: Classic CAN (up to
1,000 kb/s) and CAN FD (up to 5 Mbps)
• Independent configuration for each channel
- mix and match protocols and speeds
• Hardware-accelerated filtering with 13
filters per channel for intelligent message
routing
• Robust Commercial/Automotive Design
