Item # AX100520 — 2 Universal Inputs, 10A H-Bridge Output Controller, SAE J1939
)

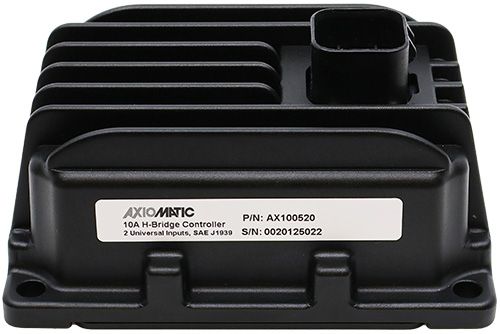

The Axiomatic H-Bridge Controller, P/N: AX100520, accepts two universal signal inputs and provides one output up to 10 A as a full H-Bridge or proportional output. The two universal inputs and the proportional output are both programmable as analog or digital type command signals. Powerful control algorithms allow the user to program the controller for a range of applications – including control systems for actuators, valves, and DC motors – without the need for custom firmware. The device features auto-baud-rate detection on the SAE J1939 CAN bus and is user configurable over the CAN bus by using the Axiomatic Electronic Assistant, P/N: AX070506K.
AX100520 interfaces with machine battery power, operating from 8 to 80 VDC at 12, 24, or 48 VDC nominal. Surge, reverse polarity, over-voltage, and under-voltage protections are provided.
The rugged H-Bridge Controller features one 8-pin AMPSEAL connector and is fully enclosed with an IP67 rating to protect against water and dust exposure. AX100520 is designed to operate from -40 to 85°C (-40 to 185°F) for harsh environments including, but not limited to, off-highway and agricultural equipment.
For more details, please visit the AX100520 webpage.
