Item # AX140705 — 6 Port Gigabit Ethernet Switch
)

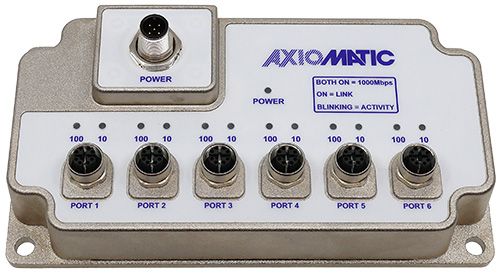

The 6 Port Gigabit Ethernet Switch is designed for mining and off-highway equipment applications, such as autonomous vehicles, requiring 10/100/1000BASE-T Ethernet connectivity. The internal state of the switch is displayed by LEDs on the front panel of the housing.
The device features 6 Ethernet ports, with each port capable of transmitting data at 10, 100, or 1000 Mbit/s. The switch internal logic is not configurable, resulting in unmanaged switch functionality. An RS-232 port can be used to configure switch ports, monitor the device performance, download and upload configuration parameters, and update application firmware.
The Gigabit Ethernet Switch requires a supply voltage of 12 or 24 VDC nominal (9 to 36 VDC) for operation and features a separate Power Enable digital signal. The Power Enable signal is used to power-up the device in applications where the switch is constantly connected to the battery. The unit is enclosed in a rugged, anodized, IP67-rated housing, resistant against water and dust exposure.
For more details, please visit the AX140705 webpage.
