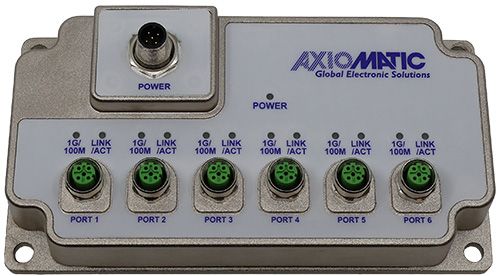

AX141570 features 6 Automotive Ethernet ports with an embedded web server on Port #1 that allows users to configure the switch ports, monitor the device performance, download and upload configuration parameters, and update application firmware. An auxiliary RS-232 port can be used as a local alternative to the remote web server interface for switch configuration. The internal logic of AX141570 is not configurable, resulting in unmanaged switch functionality.

The AX141570 Switch needs a supply voltage of 12 or 24 VDC nominal (9 to 36 VDC) to operate and features a separate Power Enable signal that is used to power the device in applications where the switch is constantly connected to the battery. The Automotive Ethernet utilizes a single twisted pair cable to save on wiring costs within the machine. The AX141570 unit is enclosed in a rugged, anodized, housing that features an IP67 protection rating, resistant against dust and water exposure.

For more details, please visit the AX141570 webpage on Axiomatic Technologies’ website.
