MicroMod FD ECU
)
The plug-in module PCAN-MicroMod FD is a universal solution for the integration of a CAN FD interface and I/O functionality into your own hardware. PCAN-MicroMod FD based products from PEAK-System as well as customer developments can be set up with the Windows® software PCAN-MicroMod FD Configuration.
The configuration created on the computer is transferred via the CAN bus to the PCAN-MicroMod FD which then runs as an independent CAN node. Multiple modules can be configured independently on a CAN bus.

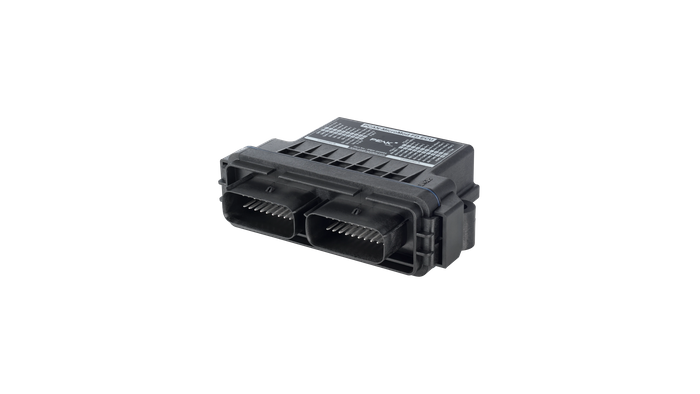

Module with integrated PCAN-MicroMod FD High-speed CAN connection (ISO 11898-2) Wake-up by CAN bus or by separate input 4 digital inputs 8 digital outputs with High-side switches 8 analog inputs 4 of the analog inputs alternatively usable as analog output 2 frequency outputs Connections for CAN, I/O, and power supply via two 20-pole automotive connectors (Molex MX150) Plastic casing with increased Ingress Protection IP67 and flange Operating voltage 8 to 32 V; suitable for use in 12 and 24 V vehicle electrical systems Extended operating temperature range from -40 to +85 °C (-40 to +185 °F) E1 type approval
The configuration created on the computer is transferred via the CAN bus to the PCAN-MicroMod FD which then runs as an independent CAN node. Multiple modules can be configured independently on a CAN bus.
- Complies with CAN specifications 2.0 A/B and FD
- CAN FD bit rates for the data field (64 bytes max.) from 40 kbit/s up to 10 Mbit/s
- CAN bit rates from 40 kbit/s up to 1 Mbit/s
- Pull-up or pull-down configurable
- 2 outputs with 5 A and 6 outputs with 2 A
- 4 alternatively usable as a digital input or additionally for reading back the output level
- Resolution 16 bit
- Measuring range adjustable: ±2.5 V, ±5 V, ±10 V, ±20 V
- Resolution 12 bit
- Voltage range adjustable: 0 to 5 V or 0 to 10 V
- Low-side switches (3 A)
- Adjustable frequency range from 0 to 20 kHz
- Alternatively usable as analog inputs with voltage range from 0 to 60 V
