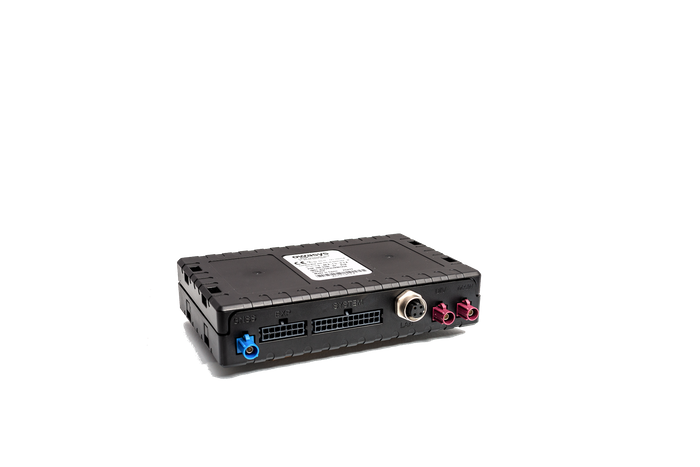

Owasys owa450 Industrial Linux IoT Gateway
The Owasys owa450 bridges the gap between high-density vehicle communication networks and open-source software flexibility
By moving data filtering and real-time analysis directly onto the device, you drastically reduce ongoing cellular overhead while maintaining high operational awareness
Detailed Technical Specifications: *
- Processing Core: ARM Cortex A8 (800MHz) with 512MB DDR3 RAM and 1GB NAND Flash, featuring full access to standard Debian repositories
. - Advanced Network Interfaces: Supports up to 4x CAN interfaces (including 2x CAN FD interfaces supporting up to 8Mbps) alongside K-Line, RS485, RS232, and 10/100Mbps Ethernet
. - High-Assurance Security: Integrated TPM 2.0 hardware module to enforce secure cryptographic boundaries and safe software updates at the machine level
. - Dense Sensor Fusion I/O: Features 10 configurable digital inputs/outputs (functioning as low-power wake signals or 3kHz counters), 4 analog inputs (12-bit resolution), a Maxim 1-Wire interface, and an optional 9-axis sensor array
. * - Global Telematics Routing: Multi-constellation 72-channel GNSS (GPS, GLONASS, Galileo, BeiDou) paired with a worldwide LTE Cat 1 communication module with 3G/2G fallback
. - Physical Profile: Compact PC+ABS enclosure measuring $150\text{mm} \times 94\text{mm} \times 32\text{mm}$ utilizing standard Molex Microfit 24-way connectivity
.
Deploy the owa450 to gain total hardware interoperability and an efficient, programmatic edge pipeline for your industrial vehicle operations.
