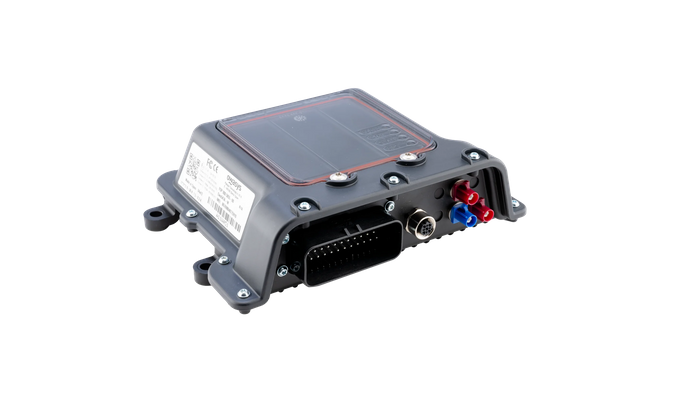

Owasys owa5X Rugged Industrial IoT Gateway & Edge Computer
)
The Owasys owa5X is the premier, heavy-duty open Linux IoT platform engineered for the most demanding vehicle and machine architectures. Driven by a blazing fast NXP i.MX8 M Plus Quad-Core 64-bit processor, it moves beyond basic telemetry to act as a full-scale edge orchestrator; capable of handling dense machine data parsing, complex logic modeling, and advanced processing pipelines right on the machine chassis.
Key Technical Specifications:
High-Performance Core: i.MX8 M Plus Quad-Core Cortex-A53 (64-bit) clocking at 1.6GHz, running an open Linux Kernel 5.10.72 with support for Debian 11 or Yocto Kirkstone distributions.
Next-Gen Hardware Acceleration: Equipped with an optional Neural Processing Unit (NPU) delivering up to 2.3 TOPS for edge AI applications, alongside a dedicated graphics processing unit (GPU).
Expanded Memory Capacity: Loaded with 2GB LPDDR4 RAM (expandable to 4GB), 1GB NAND Flash SLC, and 8GB eMMC Flash (expandable up to 32GB).
Advanced Automotive Bus Routing: Accommodates up to 4x CAN interfaces with full CAN FD (Signal Improvement Capability) support for next-generation multi-megabit vehicle buses, alongside K-Line and RS232/RS485 ports.
Military-Grade Environmental Rating: Certified to IP67 and IP6K9K standards, small footprint with built on mounting, featuring a heavy-duty TE 35-pin system connector.
High-Assurance Cyber Security: Dual-layer hardware protection combining NXP High Assurance Boot (HAB) secure boot validation with an onboard TPM 2.0 cryptographic module.
Global Connectivity Array: Global LTE Cat 4 cellular communication with 3G/2G fallback, Wi-Fi 802.11ac, Bluetooth Low Energy (BLE), and high-precision 72-channel concurrent GNSS tracking (GPS, GLONASS, Galileo, BeiDou).
High-Density Sensor I/O: Offers up to 12 configurable digital inputs/outputs, 4 high-resolution analog inputs, an internal 6-axis MEMS sensor (Accelerometer/Gyroscope), and optional dead reckoning logic.
Deploy the flagship owa5X platform to establish a secure, lightning-fast edge intelligence infrastructure and gain absolute software sovereignty over your heavy vehicle fleets.
Request an owa5X hardware quote or schedule a technical deep-dive at Booth 220.
