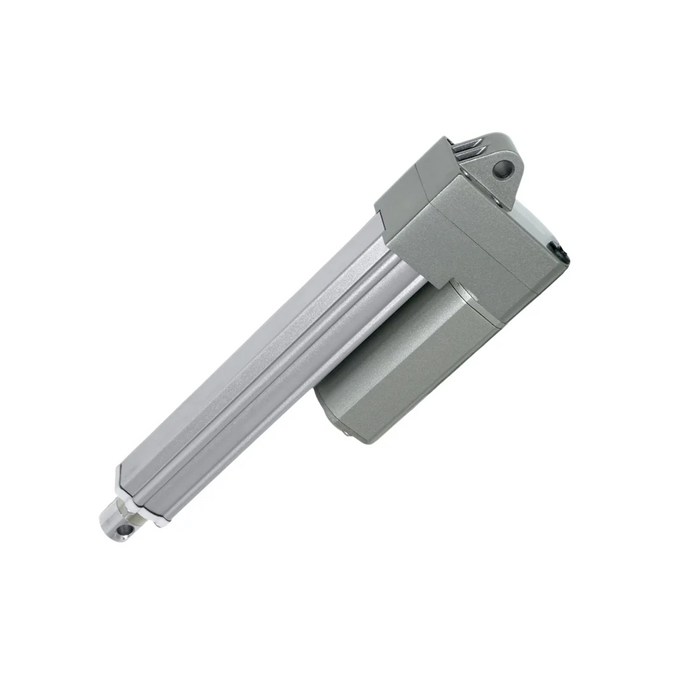

PA-09 Mini Industrial Actuator - Optional Feedback
)
)
)
)
)
)
Both voltage configurations operate at 0.39 in./sec with no load and 0.27 in./sec at full load. Maximum full-load current is 4.0 A at 12 VDC and 3.0 A at 24 VDC, supporting integration into compatible low-voltage systems where power consumption and available space are important considerations.
The PA-09 features IP66 environmental protection, a stainless steel stroke rod, aluminum alloy 6062 housing, an ACME screw, brushed DC motor, and built-in non-adjustable limit switches. It operates across a temperature range of -25°C to 65°C, at less than 45 dBA, with a 25% duty cycle.
Optional Hall Effect feedback is available for applications requiring repeatable position feedback and compatible control functionality. This provides additional flexibility for automated positioning systems while retaining the PA-09's compact form factor and 330 lb force capability.
Progressive Automations identifies the PA-09 for mobile machinery, agricultural equipment, automotive, and marine applications. Listed examples include motorhomes, spreaders, and automated guided vehicles. Its combination of compact size, IP66 protection, low-voltage operation, and medium-force capability makes it relevant for electric positioning and adjustment functions where a full-size industrial actuator may not fit.
