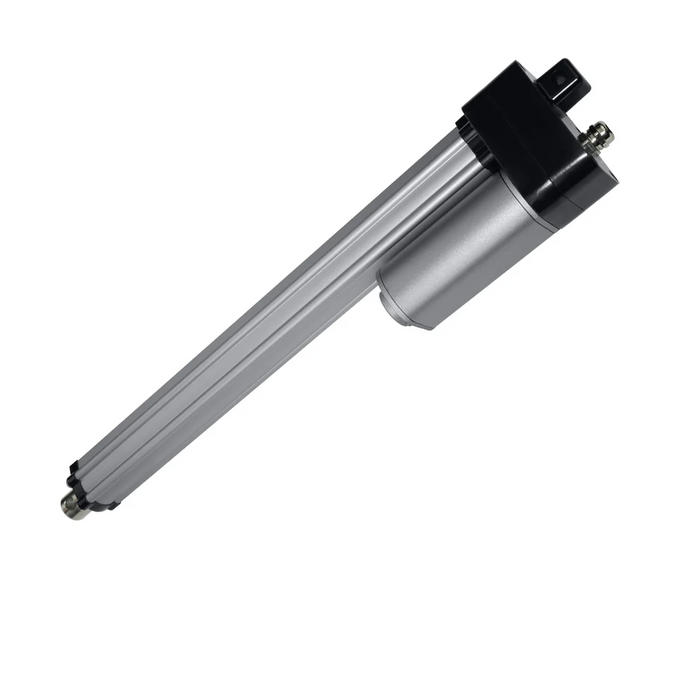

PA-10-HALL Feedback Linear Actuator IP66
)
)
)
)
)
)
Performance varies by voltage. The 12 VDC configuration operates at 0.28 in./sec with no load and 0.16 in./sec at full load, while the 24 VDC configuration reaches 0.56 in./sec with no load and 0.33 in./sec at full load. Maximum full-load current is 6.0 A at 12 VDC and 4.0 A at 24 VDC.
Integrated Hall effect feedback supports accurate position feedback, synchronized movement, speed control, and advanced motion control when paired with compatible control systems. This makes the PA-10-HALL a practical option for applications where multiple actuators must move together or where precise linear positioning is required.
The actuator features IP66 weather protection, a 20% duty cycle, an operating temperature range of -20°C to 70°C, and operating noise below 45 dBA. It also includes built-in non-adjustable limit switches, a 60-inch cable, and a Molex Mini-Fit Jr 6-pin connector for integration with compatible Hall effect control systems.
For applications exposed to more corrosive conditions, the PA-10-HALL can also be custom ordered with a Salt Spray-rated finish featuring a porcelain-plated housing tested for up to 400 hours of salt spray exposure.

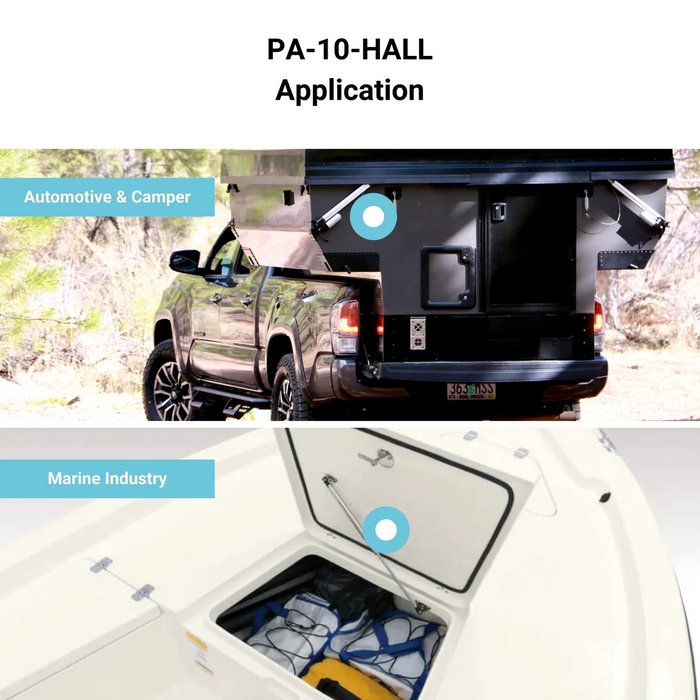

Progressive Automations identifies the PA-10-HALL for marine equipment, automotive systems, agricultural machinery, and other automation projects requiring compact, high-force linear motion with position feedback and synchronized control.
