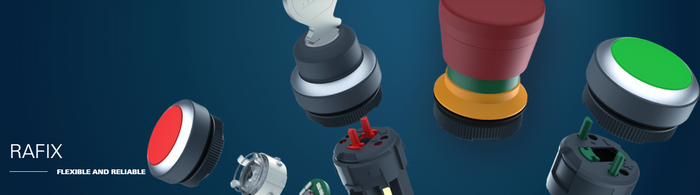

RAFI RAFIX - Modular Control Components
)
All RAFIX series come in a modular design that consist of one actuator and one switching element meaning you only need to store the individual parts and can combine them as you wish. This gives you countless combination options for production and final assembly allowing you to create all the variations you require.
The RAFIX 22 FS+ series with a mounting hole of 22.3 mm sets the standard in the control component sector. The modern construction, aesthetic, and functional design are vital in an increasingly design oriented industrial environment. The comprehensive selection and variability of actuators gives designers maximum creative freedom, including brilliant colors and homogeneous illumination of large actuating areas. By combining different front rings, you can create a distinctive, easily recognizable control panel. This enables the intuitive assignment of a defined color to a specific input command.
- Special tactile feedback
- Ideal for operation with gloves
- The FS technology PCB switching elements minimize assembly errors
- The short-travel adapter also allows short switching travel for pushbuttons with normally open contacts. This is where our MICON 5 is ideal.
- FLEXLAB technology for easy and custom pushbutton legending
- Design adaptation with different front ring variations
- Protection rating: IP65 to the front side
- Switching elements with silver contacts (max. 250 V/4 A) or gold contacts (max. 35 V/100 mA)
- Terminal types: PCB terminal, quick-connect terminal
RAFIX 22 FSR is the ideal choice for applications where ruggedness, economy, and maximum efficiency are essential. With proven FS+ technology and robust design, this guarantees reliable performance. The low mounting depth of the switching elements saves valuable space and enables quick assembly.
Thanks to its IP 65/IP 69 degree of protection on the front side, RAFIX 22 FSR provides optimum protection against dirt and moisture. This makes the product family perfect for demanding environments and ensures reliable operation even under extreme conditions.
- Moisture resistant, rugged, resistant to extreme temperatures
- Dirt and dust resistant
- Mounting depth of 9.2 mm (PCB) or 27 mm (QC)
- Top-quality stainless steel for increased stability and durability
- Protection classes: up to IP69
- Switching elements with silver contacts (max. 250 V/4 A) or gold contacts (max. 35 V/100 mA)
- Terminal types: PCB terminal, quick-connect terminal
The RAFIX 30 FS+ series combines all the advantages of the tried and tested RAFIX 22 FS+ control component family. The series also features an extremely flat installation height in front of the front panel with a mounting hole of 30.3 mm. The high-quality stainless steel front ring gives the RAFIX 30 FS+ a sleek and elegant design that meets even the highest aesthetic demands.
- Special tactile feedback
- Ideal for operation with gloves
- The FS technology PCB switching elements minimize assembly errors
- The short-travel adapter also allows short switching travel for pushbuttons with normally open contacts. This is where our MICON 5 is ideal.
- FLEXLAB technology for easy and custom pushbutton legending
- Protection class: IP65
- Switching elements with silver contacts (max. 250 V/4 A) or gold contacts (max. 35 V/100 mA)
- Terminal types: PCB terminal, quick-connect terminal
